Bending joints

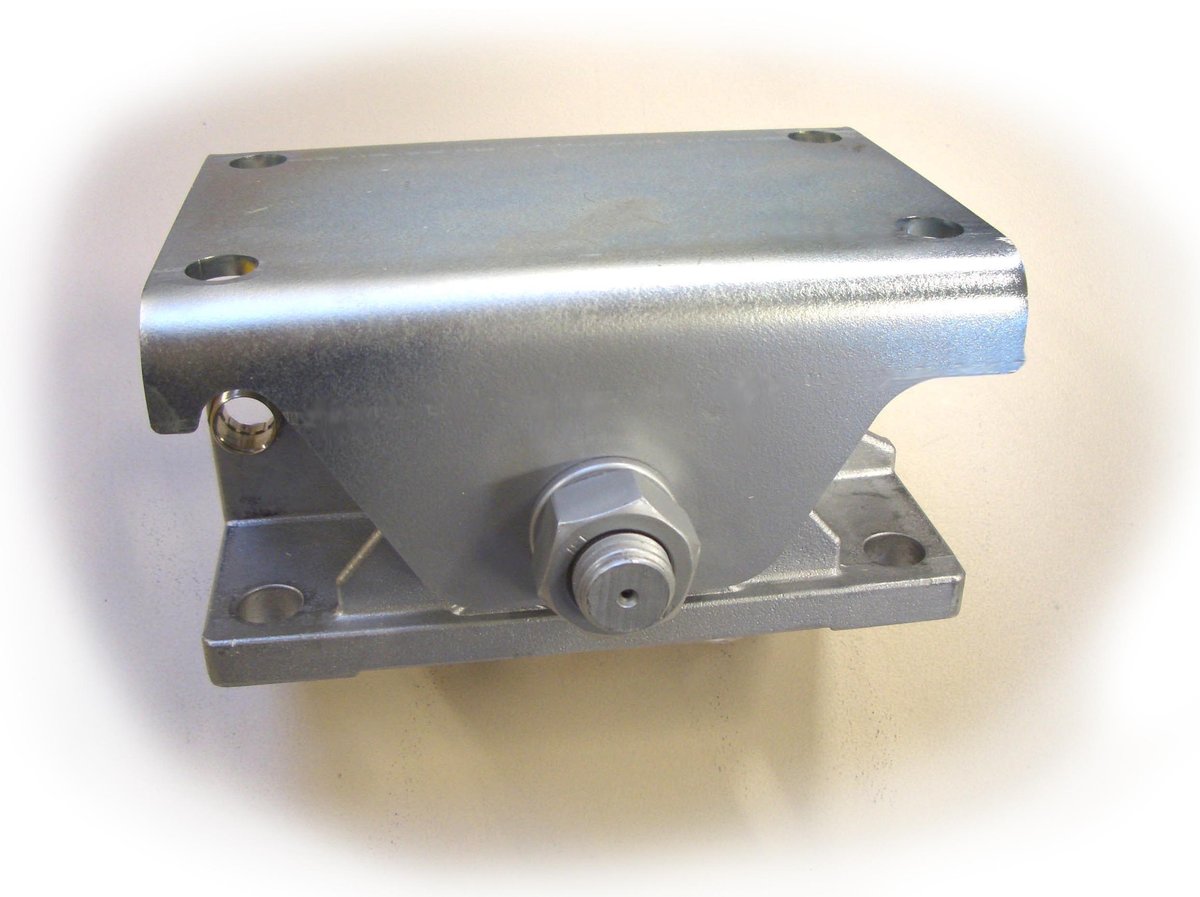

Bending joint

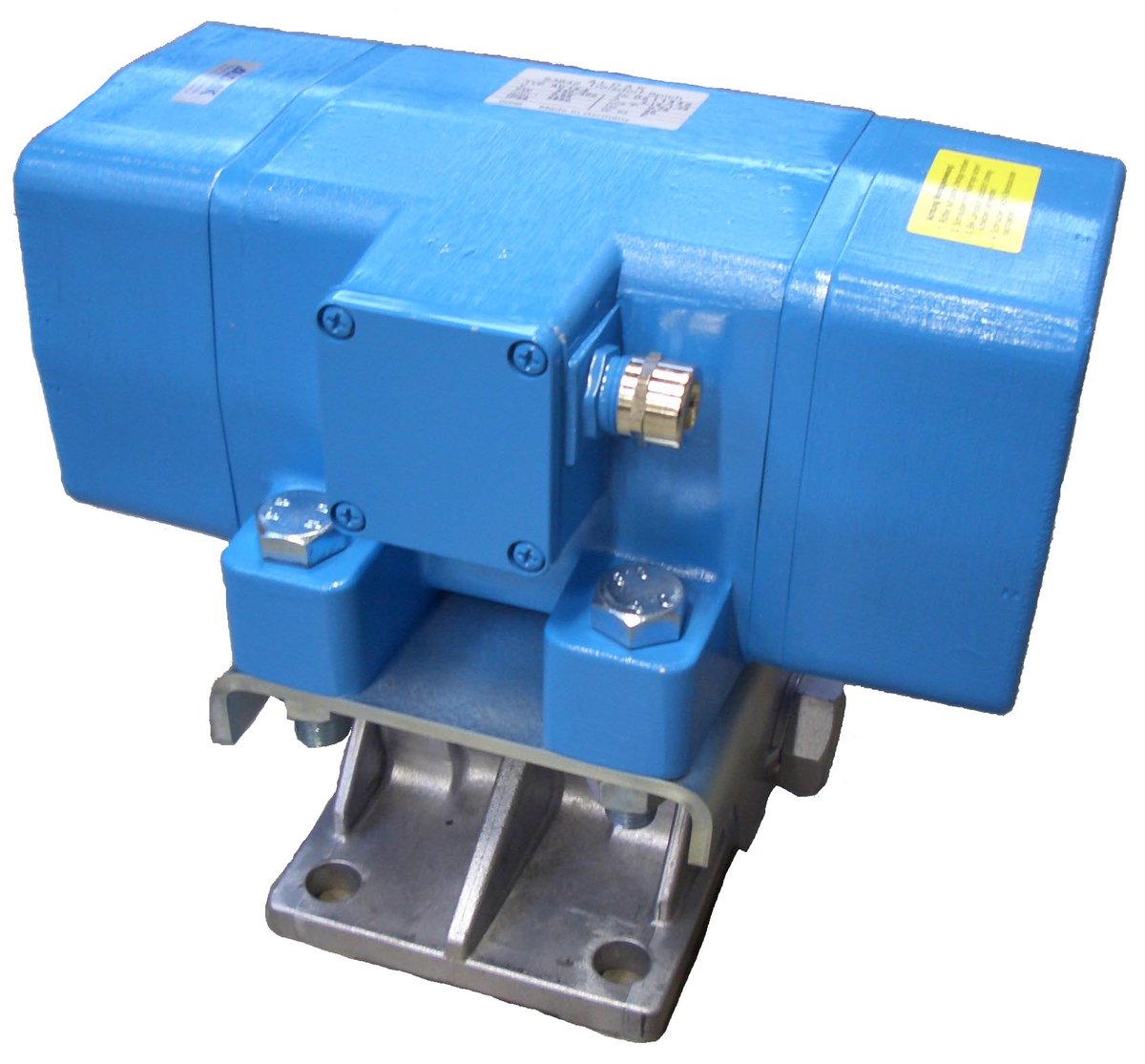

Bending joints are used to generate linear vibration when using only one vibration motor. The bending joints are suitable for bolting to the AV vibration motors listed in the table and are supplied including the motor mounting screws.

TYPE	suitable for vibration motors - series	Weight / kg

AVSR 2	AV 1,8 / 2,8 / 3,7 / 6 / 6,1 / 8,4 / 9 / 11,5 / 17,8 -... AV ... -12V / -24V	3,15
AVSR 15	AV 8,41 / 10,7 / 12 / 15 / 18 / 21 / 25 / 30 / 42 / 60 -...	6,90
AVSR 30	AV 32 / 78 -...	7,25

We reserve the right to make technical changes in the course of further development.

The applicable assembly and operating instructions must be observed.
