Pneumatic Vibrators and Knockers

pneumatische Vibratoren und Klopfer

ATEX conformed devices available:
II 2 G / D c T6 T85°C
for zones 1 and 2 (gas)
as well as 21 and 22 (dust)

Download

Dimension sketches & techical
Data (pdf)

Ball vibrators

K-8 to K-36

Low cost and lightweight pneumatic vibrators.
Rotation frequency 7,000 to 35,000 min-1.
Centrifugal force 130 N bis 4.000 N.
Noise level 75 bis 95 dBA with silencer.
Ambient temperature up to 100 ° C.
For temperatures up to 150°C possible with HT types, please request.

Link to our various ball vibrators

Roller vibrators

R-50 to R-120

Low-cost pneumatic vibrators with high centrifugal force.
Rotation frequency 10.000 bis 36.000 min-1.
Centrifugal force 1.070 N bis 12.500 N.
Noise level 75 bis 100 dBA with silencer.
Ambient temperature up to 150°C.

Link to our various roller vibrators

Roller vibrators "heavy duty"

DAR-2 to DAR-7

Very robust pneumatic vibrator.
Rotation frequency 8.000 up to 38.000 min-1.
Centrifugal force 1.070 N up to 12.000 N.
Noise level 75 bis 100 dBA with silencer.
Ambient temperature up to 150°C.

Link to our various roller vibrators “heavy duty”

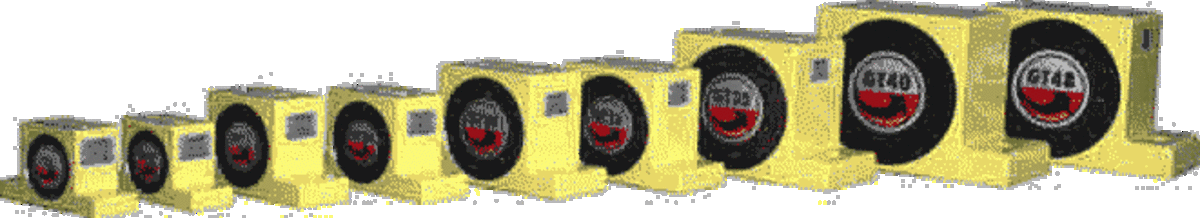

Turbine vibrators "Golden Turbine"

GT-4 to GT-48 S

Create a powerful, efficient circular vibrating energy.
Suitable for various applications such as bunkers, funnels, conveyors and screens.
Useable in the pharmaceutical and food industry due to surface-refined endplates.
High rotational frequency 5,600 to 46,000 min-1.
Low noise level (60 to 75 dBA).
Low maintenance required.
Stainless steel versions available.
135 N up to 12,000 N centrifugal force adjustable by air pressure.
Easy installation & Oil-free operation.
Ambient temperature up to 150° C

Link to our various pneumatic turbine vibrators "Golden Turbine"

Stainless steel turbine vibrators "Golden Turbine"

GT-10-RF to GT-25-RF

Outer surface of the pneumatic vibrator entirely of stainless steel.
Create a powerful, efficient circular vibrating energy.
Suitable for various applications such as bunkers, funnels, conveyors and screens.
Useable in the pharmaceutical and food industry due to surface-refined endplates.
High rotational frequency 14.000 bis 37.000 min^-1.
Low noise level (60 to 70 dBA).
Low maintenance required.
800 N up to 5.700 N centrifugal force adjustable by air pressure.
Easy installation & Oil-free operation.
Ambient temperature up to 150° C

Link to our various stainless steel turbine vibrators "Golden Turbine"

Turbine vibrators "classic"

T-50/LP to T-100/HP

Rotational frequency 6.500 bis 23.000 min^-1.
Centrifugal force 700 N up to 6.060 N.
Noise level 65 bis 80 dBA with silencer.
Ambient temperature up to 100°C.
LP-types (low pressure) economically 2 - 4 bar.
HP-types (high pressure) economically 4 - 6 bar.

Link to our various turbine vibrators "classic"

Piston vibrators

FP-12-S to FP-95-M

Corrosion resistant aluminum housing.
Operates in any position.
Low noise level (as up 65 dBA).
Low air consumption.
Low maintenance required.
Ambient temperature up to 150°C.
New: Also available as oil-free version = FPLF

Link to our various piston vibrators

Piston vibrators (lubrication-free version)

FPLF-12-XS to 95-M

Corrosion resistant aluminum housing.
Operates in any position.
Low noise level (as up 65 dBA).
Low air consumption.
Low maintenance required.
Ambient temperature up to 85°C.

Link to our various piston vibrators (lubrication-free version)

Piston vibrators (steel)

VFP

Heavy model.
Operates in any position.
High working moments.
Low maintenance required.

Link to our various piston vibrators (steel)

Piston vibrators with escaping pistons (lubrication-free version)

FAL-8 to FAL-35

Corrosion resistant aluminium housing.
Operates in any position.
High amplitudes possible by attaching additional weights.
Low air consumption.
Low maintenance required.

Link to our various piston vibrators with escaping pistons (lubrication-free version)

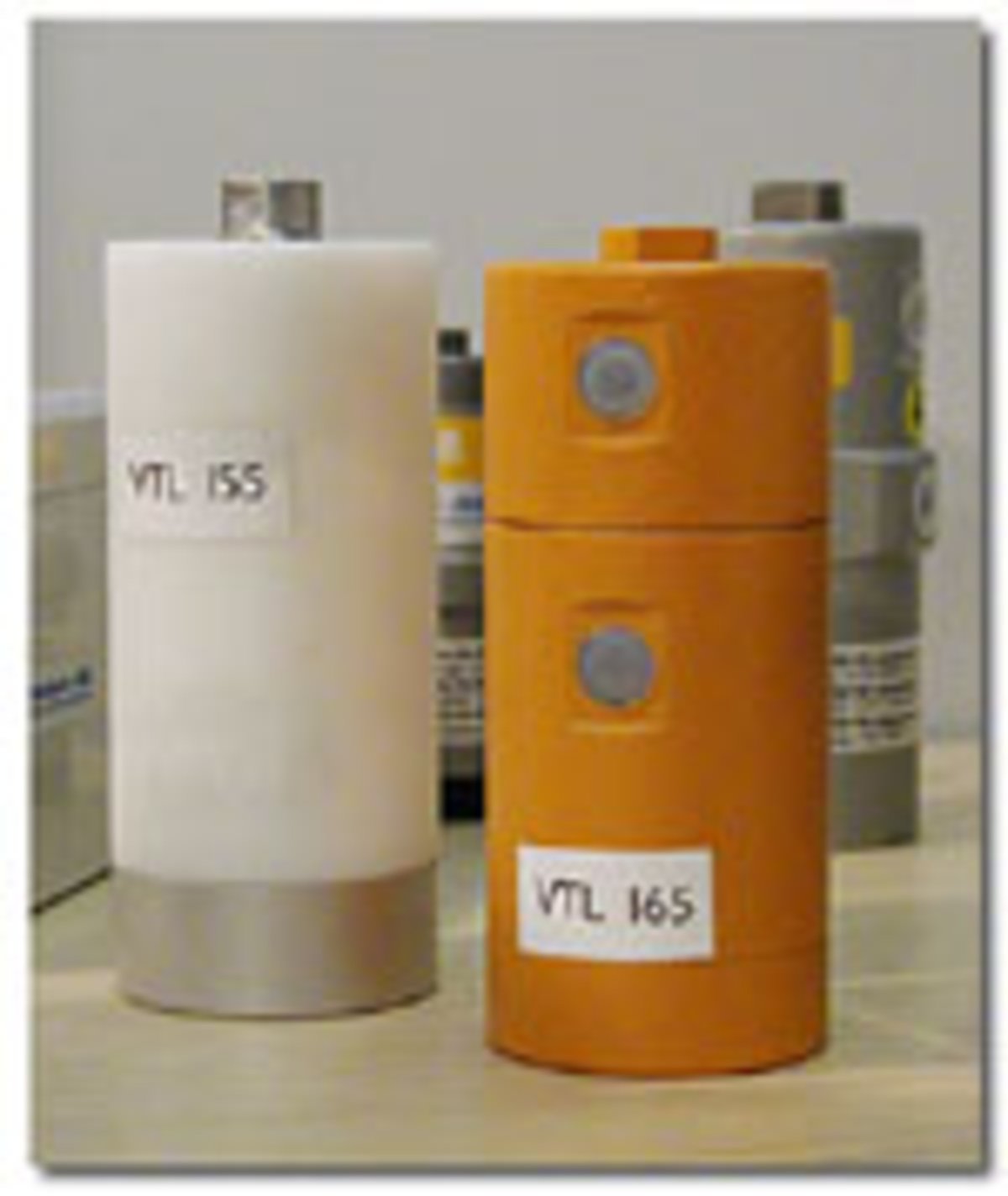

Piston vibrators with escaping pistons (steel & plastic versions)

VTL-155 to -1105

Operates in any position.
High amplitudes possible by attaching additional weights.
Low air consumption.
Low maintenance required.

Link to our various piston vibrators with escaping pistons (steel & plastic versions)

High frequency knockers + piston vibrators

FPK-40, FPK-55 and VFP-25

Piston works against air cushion or knocking.
Optionally soft-* or Hard-knocking (*only for FPK- types).
Utilizable very flexible.
Lubrication free* (*only for FPK types).
Corrosion resistant aluminium housing.

Link to our various high frequency knockers + piston vibrators

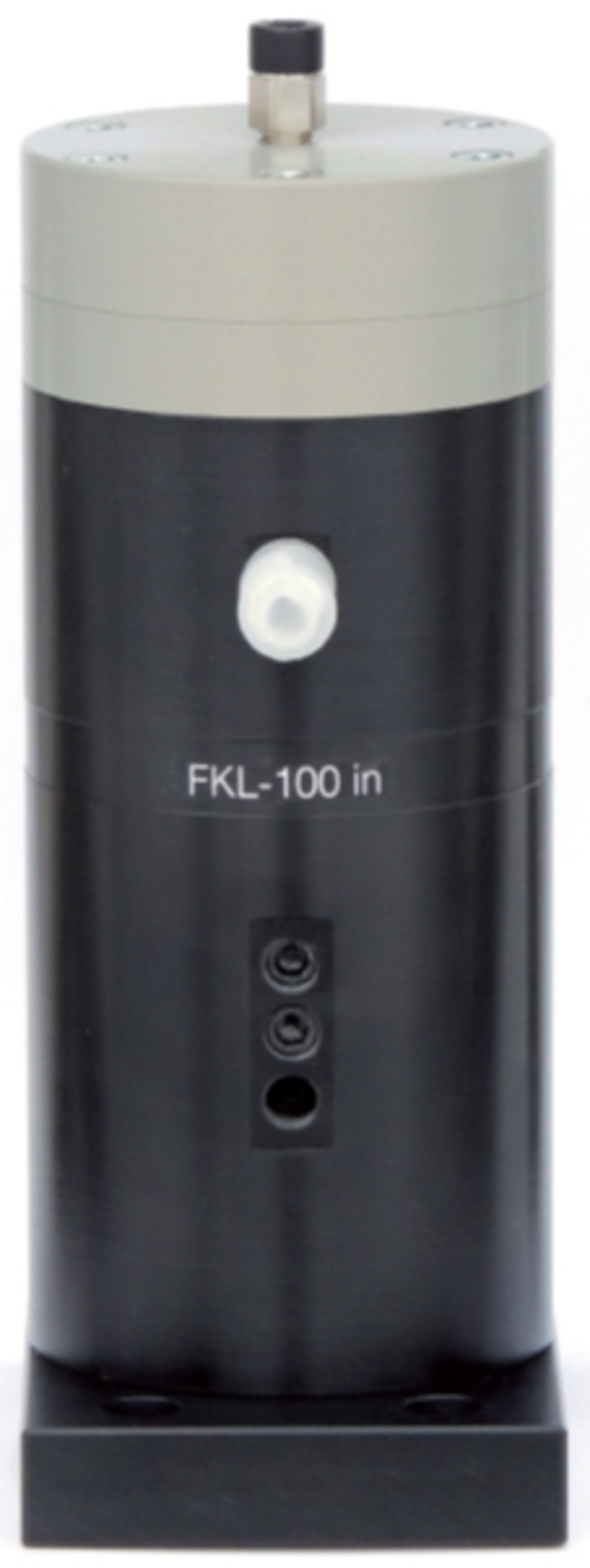

Pneumatic knockers <new>

FKL-25in to FKL-200in

New compact design.
Wide operating pressure range.
Impact force adjustable by air pressure.
Impact frequencies up to 2 Hz possible.
Lubrication-free.
Corrosion resistant aluminium housing.
Identical construction as type FKL-50si.
Replaces the types FKL-100si to FKL-200si.

Link to our various pneumatic knockers <new>

Pneumatic interval knocker

FKL-100mi

Integrated self-control system.
Impact interval adjustable without control system.
Impact force adjustable for 3 levels.
Impact frequencies as up 0,5 to 60 knocks per min.
Lubrication-free.
Corrosion resistant aluminium housing.

Link to our pneumatic interval knocker FKL-100mi

For further queries, please use the following form.
