pneumatic vibrators and beaters

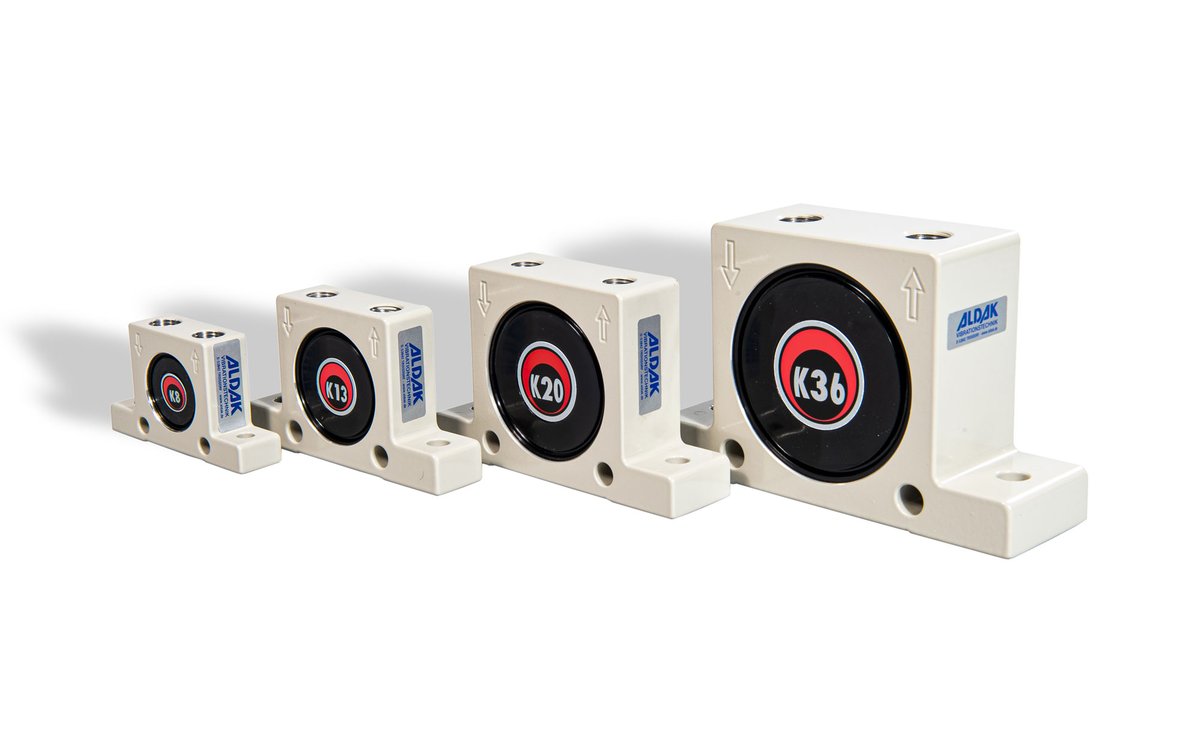

K-8 to K-36

• Low cost and light pneumatic vibrators.
• Rotation frequency 7,000 to 35,000 min-1.
• Centrifugal force 130 N to 4,000 N.
• Noise level 75 to 95 dBA with silencer.
• Ambient temperature up to 100°C.
• Temperatures up to 150°C possible with HT types, please inquire.

to the ball vibrators

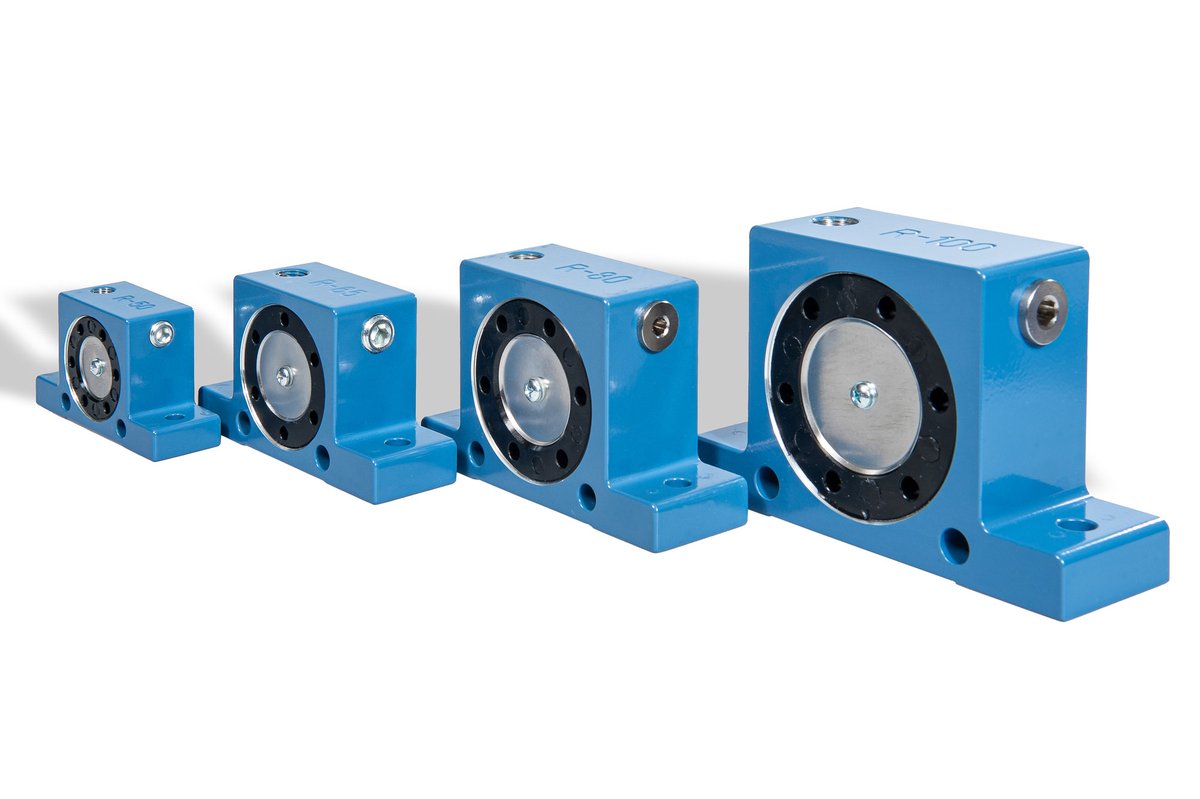

R-50 to R-120

• Low-cost pneumatic vibrators with high centrifugal force.
• Rotation frequency 10,000 to 36,000 min-1.
• Centrifugal force 1,070 N to 12,500 N.
• Noise level 75 to 100 dBA with silencer.
• Ambient temperature up to 150°C.

to the roller vibrators

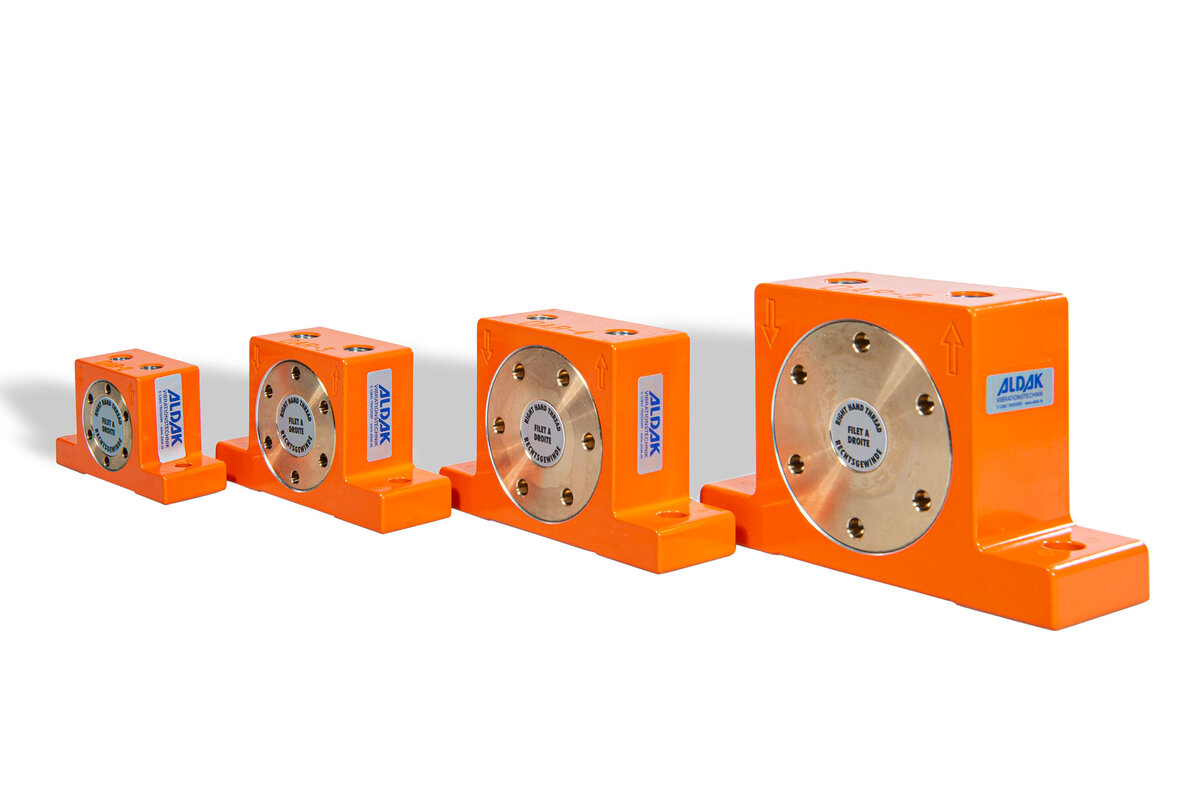

DAR-2 to DAR-7

• Very robust pneumatic vibrator.
• Rotation frequency 8,000 to 38,000 min-1.
• Centrifugal force 1,070 N to 12,000 N.
• Noise level 75 to 100 dBA with silencer.
• Ambient temperature up to 150°C.

to the roller vibrators heavy duty

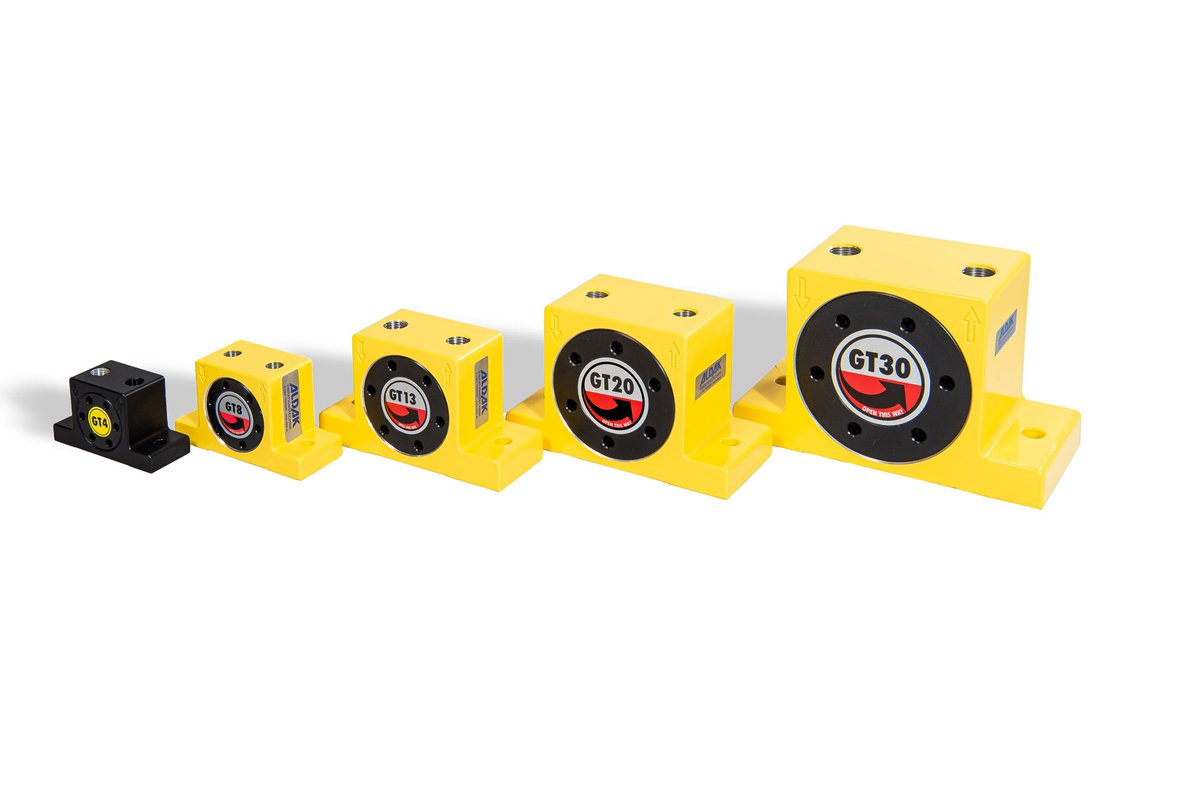

GT-4 to GT-48 S

• Generate powerful, efficient circular vibration energy. For versatile applications such as on hoppers, hoppers, conveyors and screens.
• Use in pharmaceutical and food ind. possible due to surface coated end plates.
• High rotation frequency 5,600 to 46,000 min-1.
• Low noise level (60 to 75 dBA).
• Low maintenance required.
• Stainless steel versions available.
• 135 N up to 12,000 N centrifugal force adjustable by air pressure.
• Easy installation.
• Oil-free operation.
• Ambient temperature up to 150°C.

to the pneumatic turbine vibrators Golden Turbine

GT-10-RF to GT-25-RF

• Outer surface of pneumatic vibrator compl. stainless steel.
• Generate powerful, efficient circular vibration energy. For versatile applications such as on hoppers, hoppers, conveyors and screens.
• High rotation frequency 14,000 to 37,000 min-1.
• Low noise level (60 to 70 dBA).
• Low maintenance required.
• Stainless steel versions available.
• 800 N up to 5,700 N centrifugal force adjustable by air pressure.
• Easy installation.
• Oil-free operation.
• Ambient temperature up to 150°C.

to the Golden Turbine vibrators

T-50/LP to T-100/HP

• Rotation frequency 6,500 to 23,000 min-1.
• Centrifugal force 700 N to 6,060 N.
• Noise level 65 to 80 dBA with silencer.
• Ambient temperature up to 100°C.
• LP types (low pressure) economical between 2 and 4 bar.
• HP types (high pressure) economical between 4 and 6 bar

to the turbine vibrators

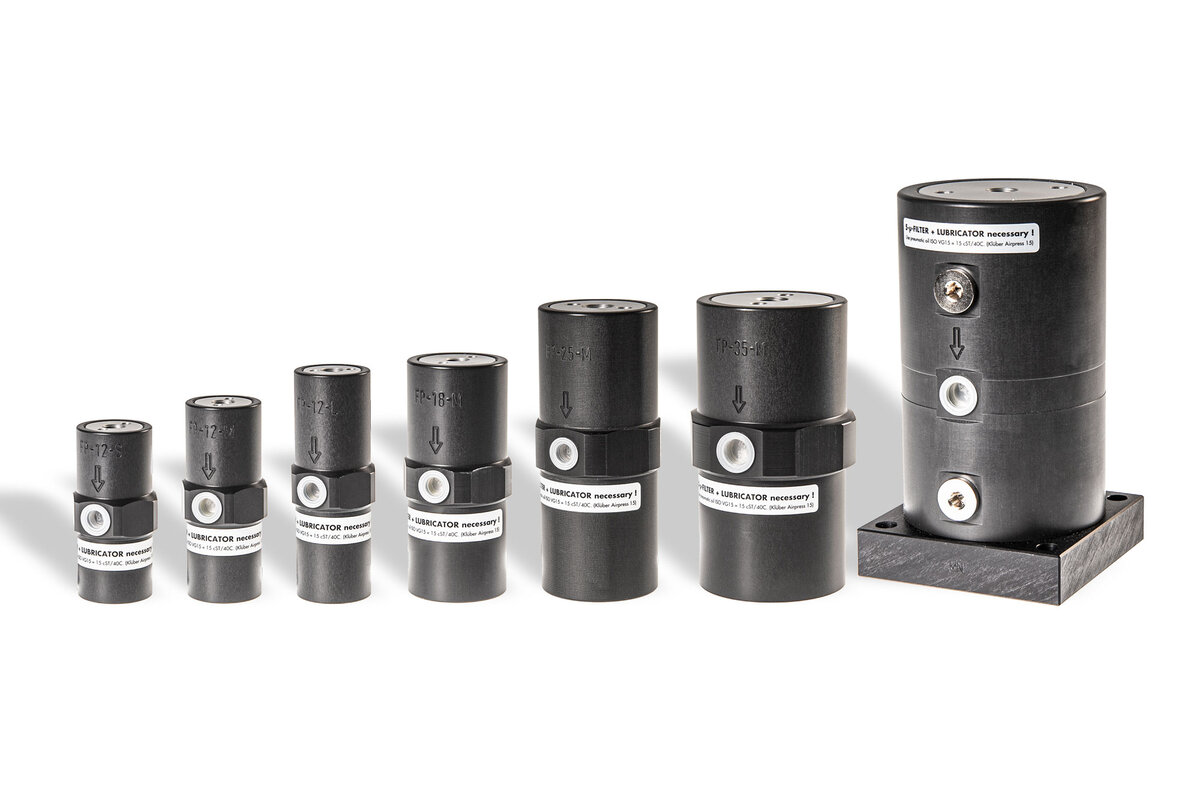

FP-12-S to FP-95-M

• Corrosion resistant aluminum housing.
• Works in any position.
• Low noise level (from 65 dBA).
• Low air consumption.
• Low maintenance required.
• Ambient temperatures up to 150°C.
• new: Also available as FPLF in oil-free version!

to the piston vibrators

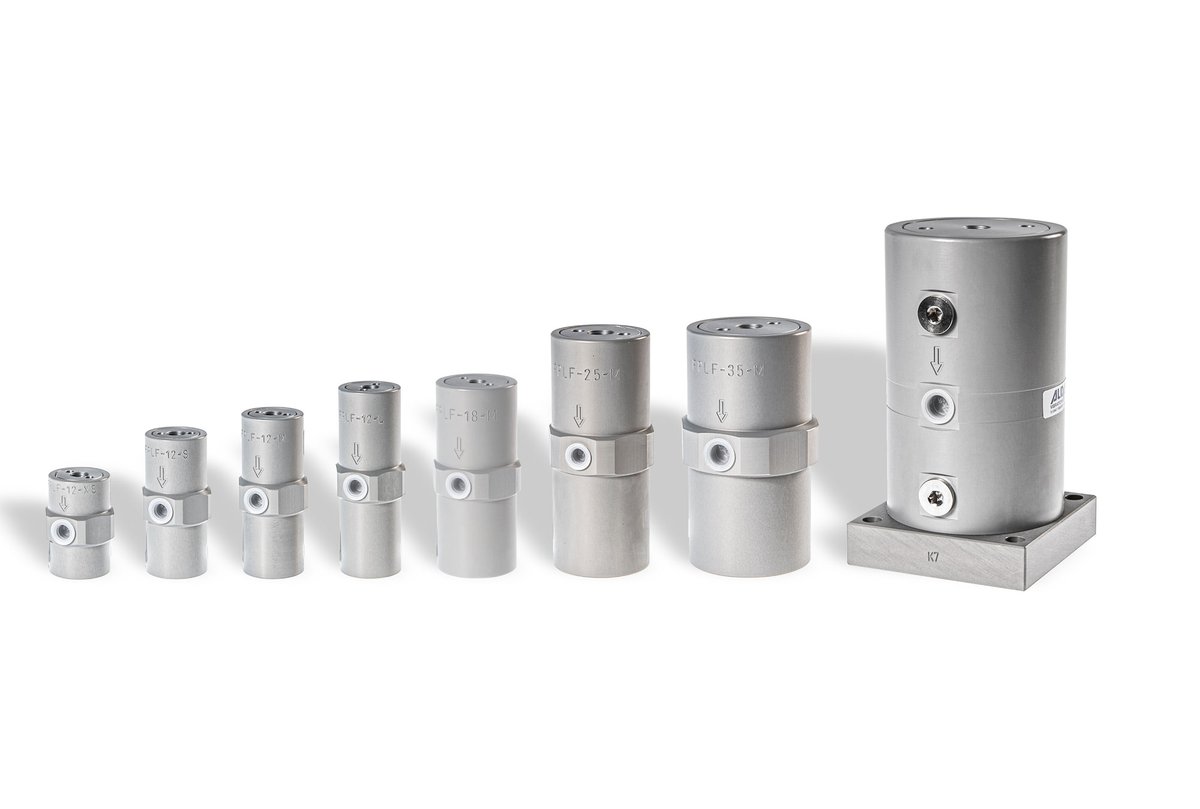

FPLF-12-XS to 95-M

• Corrosion resistant aluminum housing.
• Works in any position.
• Low noise level (from 65 dBA).
• Low air consumption.
• Low maintenance required.
• Ambient temperatures up to 85°C.

to the piston vibrators (lubrication-free version)

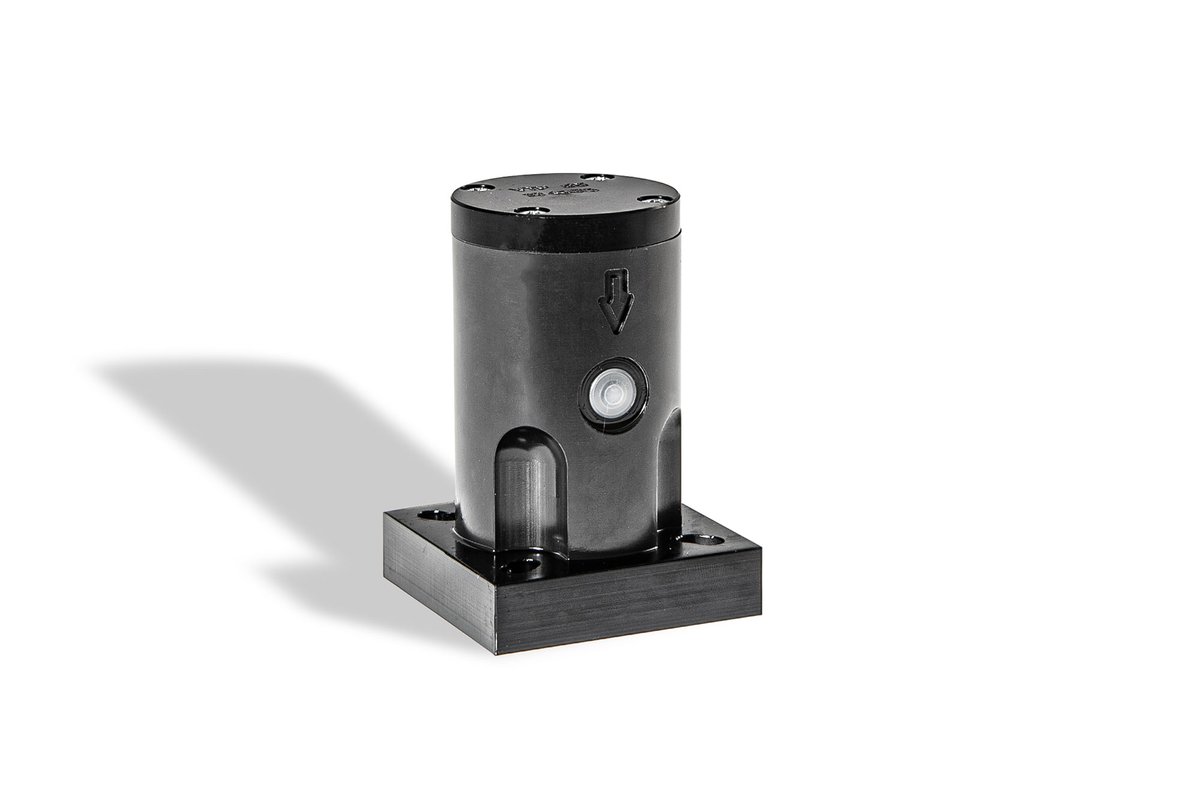

VFP

• heavy duty version.
• Works in any position.
• High working torques.
• Little maintenance required.

to the piston vibrators (steel version)

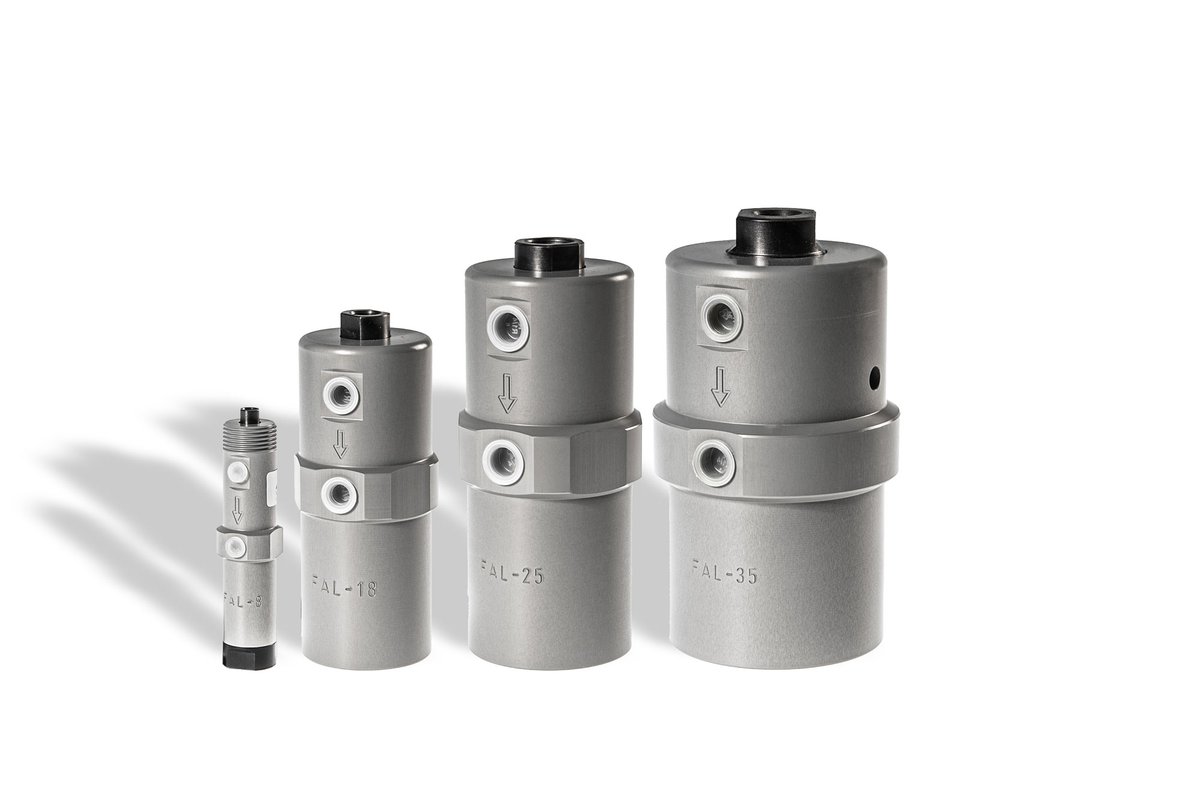

FAL-8 to FAL-35

• Corrosion resistant aluminum housing.
• Works in any position.
• High amplitudes possible by attaching additional weights.
• Low air consumption.
• Little maintenance required.

to the piston vibrators with outgoing piston (lubrication-free version)

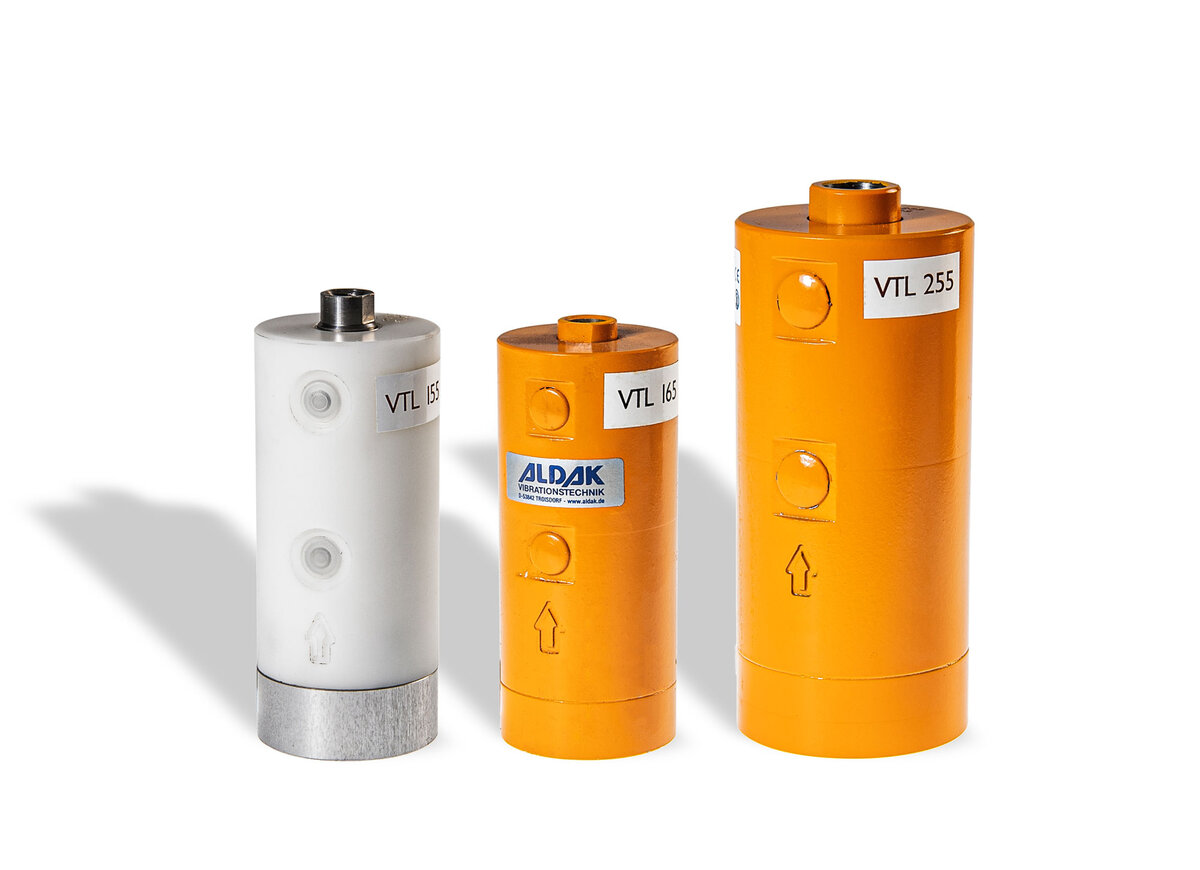

VTL-155 to -1105

• Works in any position
• High amplitudes possible by attaching additional weights.
• Low air consumption.
• Little maintenance required.

to the piston vibrators with outgoing piston (steel and plastic version)

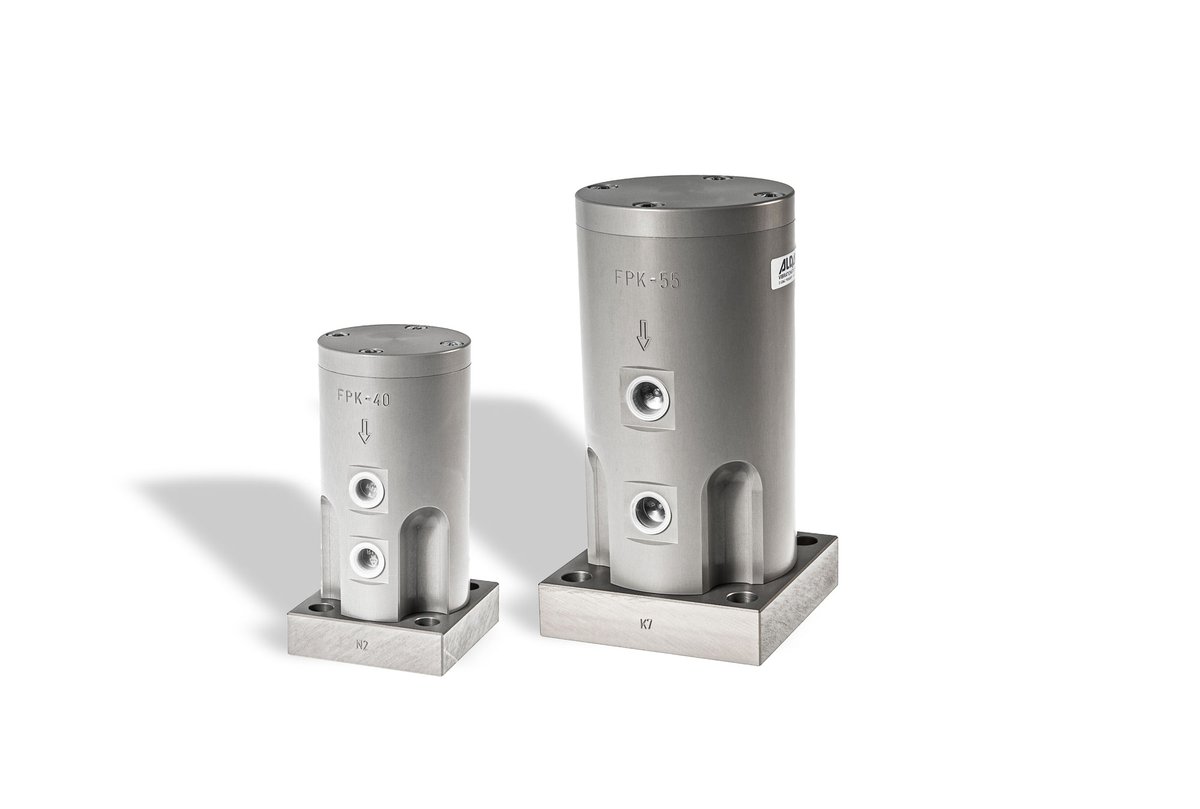

FPK-40 to FPK-55 and VFP- 25

• Piston works against air cushion or percussive
• Optionally soft-* or hard-impacting (*only FPK)
• Very flexible in use
• Lubrication-free* (*only FPK)
• Corrosion resistant aluminum housing.

to the high frequency beaters + piston vibrators

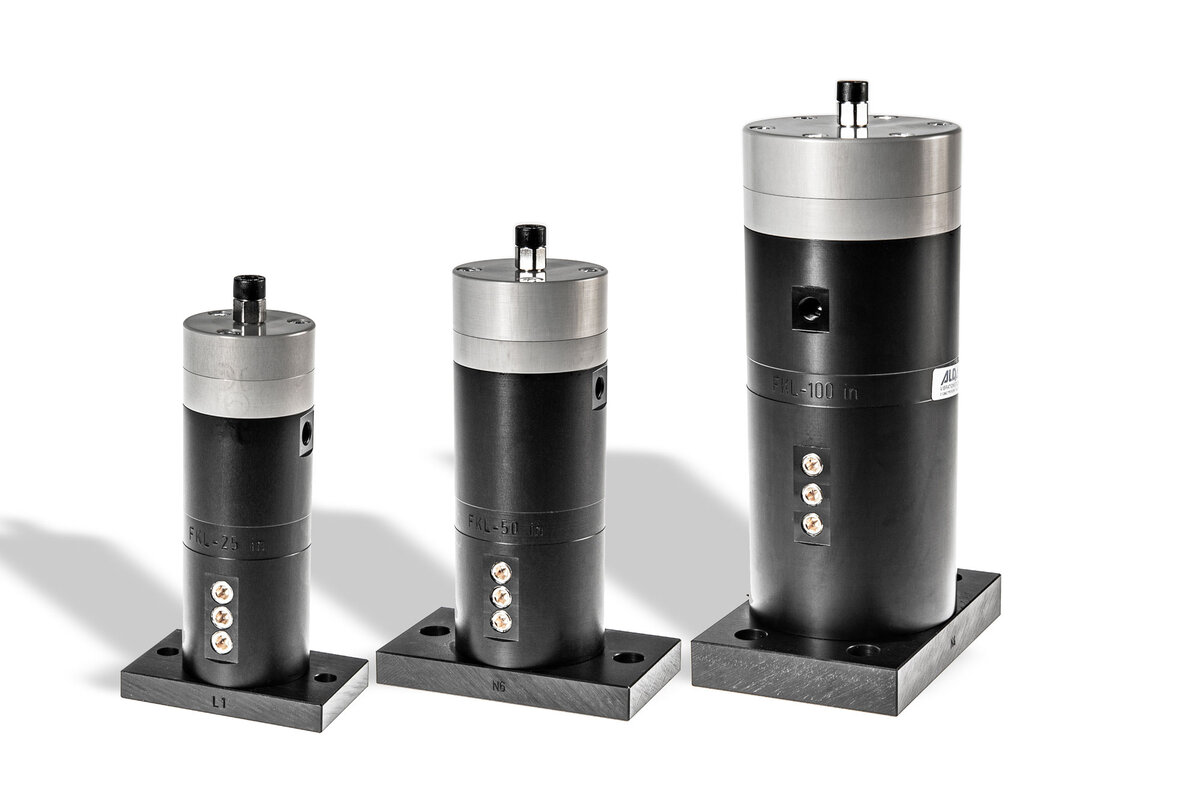

FKL-25in to FKL-200in

• New compact design
• Wide operating pressure range
• Impact force adjustable by air pressure
• Impact frequencies up to 2 Hz possible
• Lubrication-free
• Corrosion resistant aluminum housing
• Identical in construction to type FKL-50si
• replaces types FKL-100si, FKL-150si and FKL-200si

to the pneumatic beaters <new>

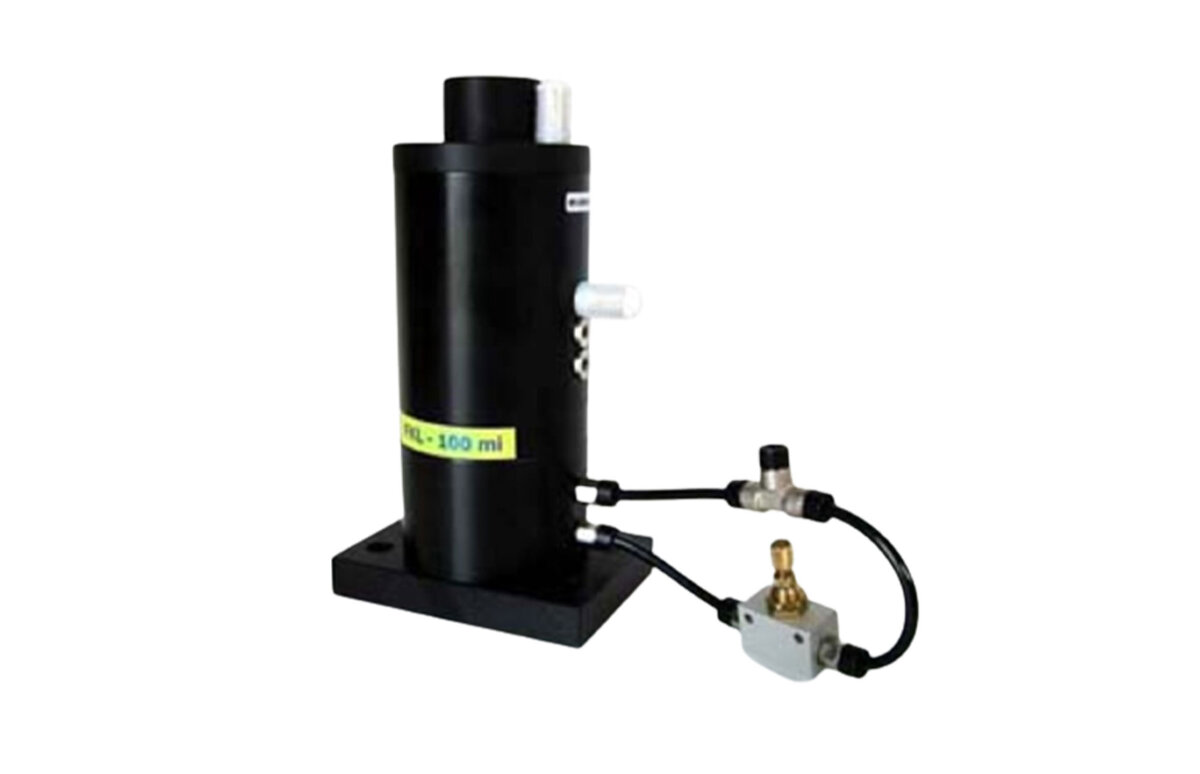

FKL-100mi

• Integrated self-control
• adjustable beat interval without control
• Impact force adjustable in three steps
• Impact frequencies from 0.5 to 200 per min.
• Lubrication-free
• Corrosion-resistant aluminum housing.

to the pneumatic interval beaters
