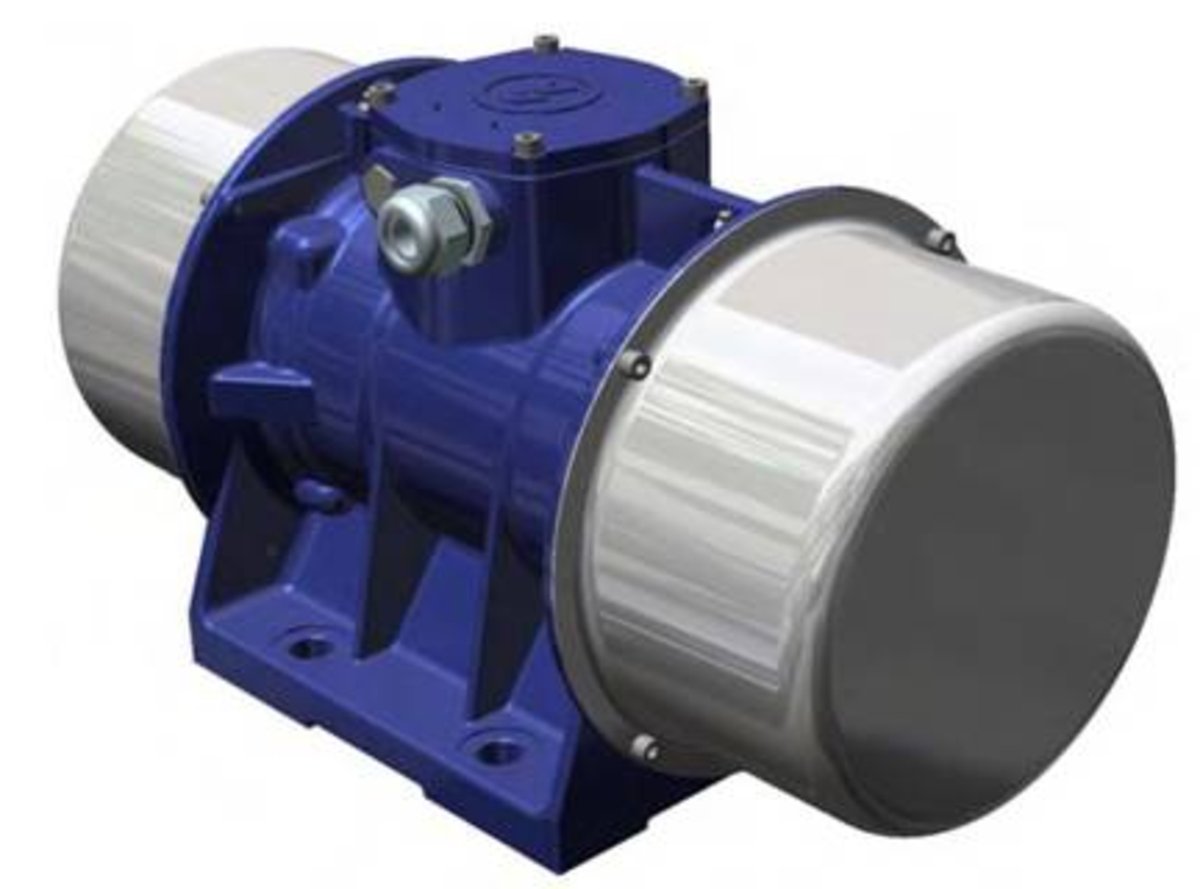

VV Electric vibrators

Standards

  • Weight covers: Stainless steel AISI 304

  • Casing: Casing in aluminium (EN AB 46400) (up to size LA), casing in spheroidal cast iron (EN 1563) (from size MA+IB)

  • Casing surface: Coating with epoxy powder (120µm), blue, aluminium high-alloyed and polished (size M)

  • 230/400V, 50Hz, 3~, IP 66, Atex II 2 D zones 21 + 22  (except size M)

  • 220-240V, 50/60Hz, 1~, IP 65 (VV000N/2), 380-460V, 50/60Hz, 3~, IP 65 (VV001N/2 + VV002N/2)

  • 12V or 24V DC direct current, IP 6 (VV-DC types)

  • Standard CSA - motors and generators (North America)

  • Ambient temperature: -20°C (size M: -30°C) up to + 40°C

  • Weights regulation system: 0-100%

  • 100% for continuous duty

  • LONG LIFE - lubrication

  • Re-lubrication: from size GA (2- and 4-poles); MA (6- and 8-poles)

  • Thermistors: from size MA

  • Stator: vacuum system (up to size GA), trickle system (from size HA)

  • Insulation class: F

  • high starting torque

  • incl. connecting cable (size M and VV-DC types)


Special designs

  • 1~ 230V, 50/60Hz (and 115V, 50/60Hz)
  • 3~ 42V bis 690V, 50/60Hz; size M: 24V up to 460V, 50/60Hz

  • Thermistors: up to size LA

  • Atex II 2 G D zones 1 + 2 + 21 + 22 (types: VV…-E)

  • Explosion Proof: Standard CSA, Class I, Division 2, Groups A, B, C and D. Temperature Coded T3C.

Vibrators for use in hazardous location (North America) (types: VV…-C)

Dimension drawings, technical data sheets & operation manuals as pdf-files for downloading.
