Roller vibrators

R - series (R-50 up to R-120)

Rollenvibrator von Aldak

Sound pressure level: 75 bis 100 dBA

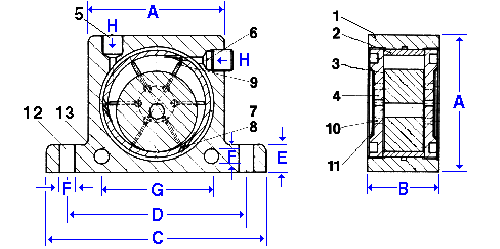

Construction details:

Technische Zeichnung des Aldak Rollenvibrator

1 - Housing from flowing pressed aluminum alloy
2 - Cast iron bar
3 - Roll of steel alloy
4 - Plastic end plates
5 - Vertical air supply
6 - Horizontal air supply
7 - Air duct
8 - Air supply nozzles
9 - Outlet openings
10 - Outlet diffuser
11 - Silencer panel
12 - Pre-drilled fixing holes (for base installation)
13 - Pre-drilled fixing holes (for laterally installation)

Dimensions:

Technische Zeichnung des Aldak Rollenvibrator



A

B

C

D

E

F

G

H

Weight

Type

mm

mm

mm

mm

mm

mm

mm

BSP

kg

R-50

50

29

86

68

12

7

40

1/8"

0.240

R-65

65

37

113

90

16

9

50

1/4"

0.545

R-80

80

43

128

104

16

9

60

1/4"

0.950

R-100

100

52

160

130

20

11

80

3/8"

1.810

R-120

120

77

194

152

24

17

NO
LATERAL

3/8"

4.260

Performance details:



Frequency
min-1 x 1000

Centrifugal force*

Air consumption / minute

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

R-50

25.0

35.0

36.0

1.070

2.920

4.220

100

145

195

R-65

19.0

21.0

26.0

2.730

4.830

6.120

200

300

400

R-80

15.5

18.5

19.0

3.000

6.090

7.450

290

430

570

R-100

11.0

14.0

16.0

3.750

6.750

8.900

370

550

730

R-120

10.0

11.5

12.5

8.000

10.000

12.500

500

730

970

* The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.

Download:

Dimensioned drawings and technical details as pdf - file
