Turbine vibrator

T -  series (T-50/LP up to T-100/HP)

Sound pressure level: 65 up to 80 dBA

Construction details:

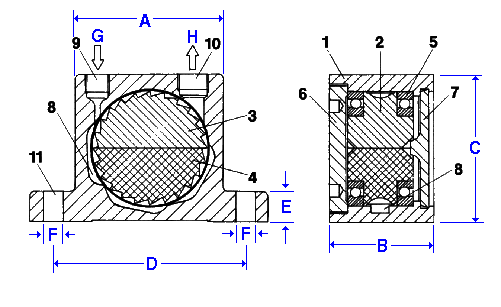

Technische Zeichnung des Turbinenvibrators

1 - Housing made of extruded aluminum alloy with hard anodization
2 - Turbine pipe
3 - Aluminum - lightweight
4 - Brass - heavy weight
5 - Ball bearing
6 - Plastic end plate with screw threads
7 - Nylon end plate
8 - Acceleration channels
9 - Air supply
10 - Air outlet
11 - Pre-drilled fixing holes (for base installation)

Dimensions:

Technische Zeichnung des Turbinenvibrators



A

B

C

D

E

F

G

H

Weight

Type

mm

mm

mm

mm

mm

mm

BSP Gew.

BSP

kg

T-50/LP

50

46

86

68

12

7

1/8"

1/4"

0.385

T-50/HP

50

60

86

68

12

7

1/8"

1/4"

0.520

T-65/LP

65

50

113

90

16

9

1/4"

1/4"

0.735

T-65/HP

65

64

113

90

16

9

1/4"

1/4"

0.975

T-80/LP

80

56

128

104

16

11

1/4"

3/8"

1.210

T-80/HP

80

70

128

104

16

11

1/4"

3/8"

1.560

T-100/HP

100

67

160

130

20

13

3/8"

3/8"

2.270

Performance details:



Frequency
min-1 x 1000

Centrifugal force*

Air comsumption / minute

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

T-50/LP

17.0

21.5

23.0

700

1.240

1.710

67

115

165

T-50/HP

11.0

14.5

16.5

600

1.020

1.350

79

140

198

T-65/LP

9.5

13.0

15.0

770

1.380

1.800

89

157

236

T-65/HP

8.5

10.5

12.0

1.300

2.050

2.600

108

193

290

T-80/LP

9.0

11.5

13.0

1.840

2.960

3.790

150

260

385

T-80/HP

6.8

9.0

10.5

2.000

3.470

4.740

NA

260

385

T-100/HP

6.5

9.0

10.0

2.480

4.800

6.060

NA

300

430

* The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.

Download:

Dimensioned drawings and technical details as pdf - file
