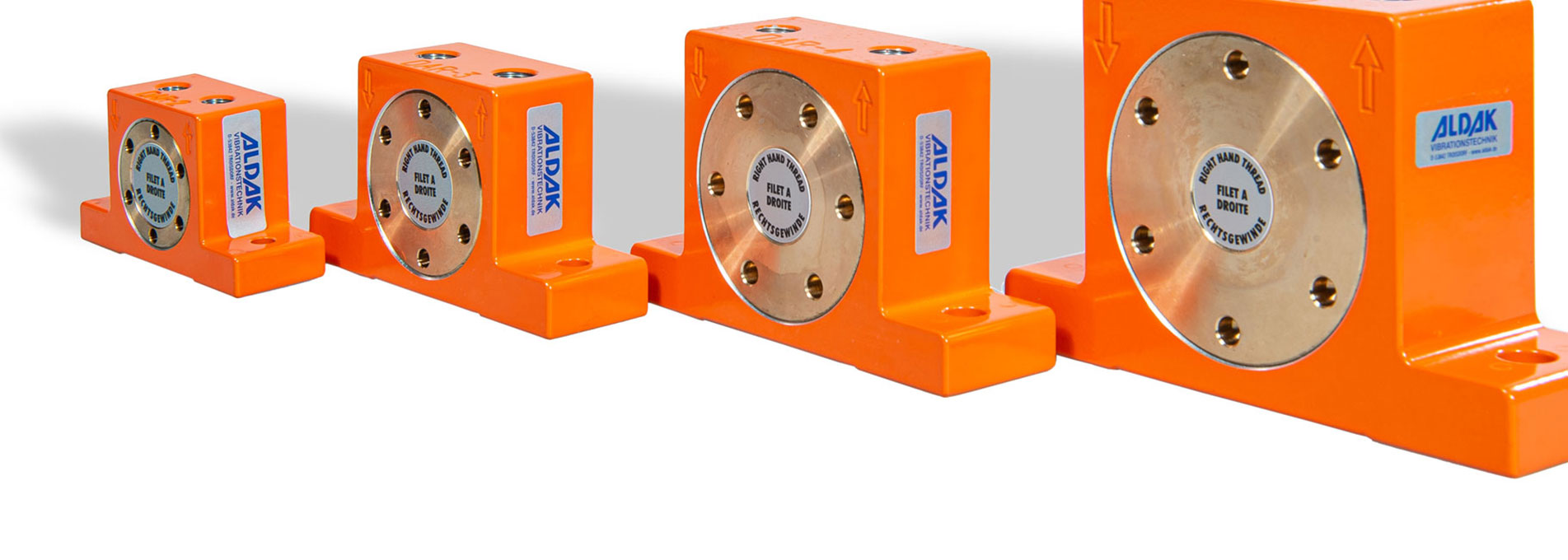

Turbine vibrator GOLDEN TURBINE

GT - Series (GT-4 to GT-48S)

Turbinenvibrator Golden Turbine

Noise level: 65 to 80 dBA

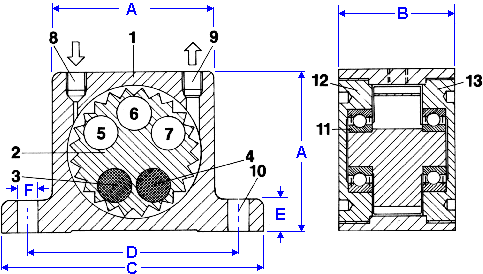

Construction of the turbine vibrators:

Technische Zeichnung der GT-Serie

1 - Extruded aluminum alloy housing
2 - Surface hardened aluminum turbine wheel
3-4 - High density inserts: positive torque
5-7 - Openings to achieve negative torque
8 - Air inlet
9 - Air outlet
10 - Base mounting holes
11 - Paired arrangement of pre-lubricated closed ball bearings
12 - Surface-hardened aluminum end plate with left-hand thread
13 - Surface-hardened aluminum end plate with right-hand thread

Dimensions:

Technische Zeichnung der GT-Serie

A

B

C

D

E

F

G/H

Weight

Model

mm

mm

mm

mm

mm

mm

wt.

kg

GT-4
GT-6

40

28

70

56

10,5

6

1/8"

0.165
0.170

GT-8
GT-10
GT-10-S

50

33

86

68

12

7

1/8"

0.250
0.255
0.263

GT13
GT-16
GT-16-S

65

42

113

90

16

9

1/4"

0.565
0.580
0.614

GT20
GT-25
GT-25-S

80

56

128

104

16

9

1/4"

1.090
1.120
1.200

GT30
GT-36
GT-36-S

100

73

160

130

20

11

3/8"

2.200
2.300
2.530

GT40
GT-48
GT-48-S

120

83

194

152

24

17

3/8"

3.690
3.890
4.290

Performance of the turiben vibrators:

Frequency
min-1 x 1000

Centrifugal force*

Air consumption / minute

Model

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

GT-4
GT-6

14.0
11.5

15.0
12.0

15.0
12.5

135
130

180
175

200
210

33

58

83

GT-8
GT-10
GT-10-S

36.0
27.5
17.0

42.0
35.0
23.0

46.0
37.5
25.0

990
840
650

2060
1390
1350

2910
2400
1950

46

80

112

GT13
GT-16
GT-16-S

26.0
17.0
11.5

30.0
21.5
15.5

33.0
24.0
17.0

1400
1220
1100

2440
2090
1900

3730
3160
2700

120

200

290

GT20
GT-25
GT-25-S

17.0
12.0
8.5

20.0
15.5
11.0

23.0
17.0
13.0

2170
2120
2250

4040
3510
3600

5520
5070
4900

185

325

455

GT30
GT-36
GT-36-S

13.0
8.0
6.1

14.0
10.0
7.2

16.0
13.0
8.3

3380
3290
4100

5430
5360
6200

7540
7190
7500

330

530

745

GT40
GT-48
GT-48-S

7.7
6.0
0.0

8.8
7.5
5.6

9.5
9.7
6.3

4300
4900
0

7300
7700
7500

9800
10500
12000

425

700

970

* The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a solid laboratory test block and displayed with a Kistler control monitor (COMO). Frequency and force decrease on less stiff supports. We reserve the right to improve, modify or withdraw specifications or products without notice or obligation.

Download:

Dimensional sketches and technical data as pdf - file
