Piston vibrators

FP -  series (FP-12-S up to FP-95-M)

New: The piston vibrators are also available as FPLF- versions. For these versions there is no lubrication necessary via compressed air.

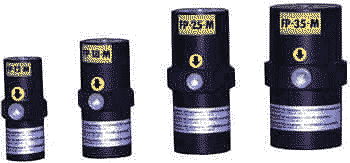

Aldak Kolbenvibratoren

Sound pressure level: 65 bis 93 dBA

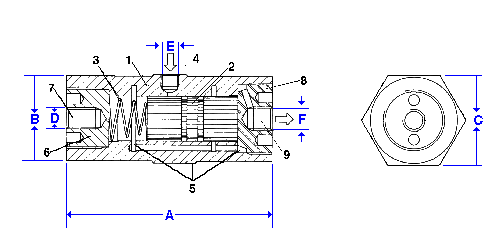

Construction details:

Technische Zeichnung von Kolbenvibratoren

1 - Housing made of hard anodized aluminum alloy
2 - Pistons - leaded bronze
3 - Spring - starting device
4 - Air supply
5 - Sound-absorbing air outlet system
6 - Hard anodized aluminum base
7 - Threaded insert for mounting
8 - Closing flap made of aluminum alloy - Hard Anodized
9 - Air outlet

Dimensions FP-12 up to FP-35:

Technische Zeichnung von Kolbenvibratoren



A

B

C

D

E*

F*

Weight
Housing

Weight
Piston

Total
Weight

Type

mm

mm

mm

Metric

 BSP

BSP

kg

kg

kg

FP-12-S
FP-12-M
FP-12-L

71
81
94

31

34

M-8

1/8"

1/8"

0.125
0.140
0.165

0.020
0.030
0.040

0.145
0.170
0.205

FP-18-S
FP-18-M
FP-18-L

81
94
109

40

42

M-10

1/8"

1/8"

0.220
0.260
0.300

0.060
0.080
0.110

0.280
0.340
0.410

FP-25-S
FP-25-M
FP-25-L

98
116
136

48

50

M-12

1/8"

1/4"

0.375
0.435
0.500

0.155
0.215
0.290

0.530
0.650
0.790

FP-35-S
FP-35-M
FP-35-L

98
116
136

58

65

M-12

1/4"

1/4"

0.530
0.610
0.700

0.315
0.430
0.580

0.845
1.040
1.280

* NPT also possible

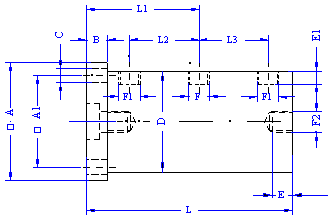

Dimensions FP-50 up to FP-95:

Maße Kolbenvibrator

Type

A

A1

B

C

D

E

E1

F

F1

F2

L

L1

L2

L3

Weight Housing

/ kg

Weight Piston

/ kg

Total Weight

/ kg
FP-50-M

90

72

20

8.8

84.0

13

10

G1/4"

G1/4"

G1/4"

154.0

78.5

41.5

41.5

1.350

1.500

3.250
FP-60-M

110

90

20

8.8

94.0

13

10

G1/4"

G3/8"

G1/4"

154.0

78.5

41.5

41.5

1.520

2.150

4.250
FP-95-M

150

124

19

13.0

140.0



12

G3/8"

G3/8"



156.0

77.5

35.0

35.0

2.600

4.900

9.400

Performance details:



Frequency
min-1 x 1000

Centrifugal force

Air consumption / minute

 Noise level

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

dBA*

dBA**

FP-12-S
FP-12-M
FP-12-L

6.2
5.0
4.0

7.8
6.0
4.8

9.3
6.7
5.4

34
34
32

70
58
58

92
74
81

0.8
0.5
1.0

7.5
4.0
3.0

25
19
20

57-61
57-61
58-60



FP-18-S
FP-18-M
FP-18-L

5.0
4.0
3.1

6.4
5.0
4.0

7.7
5.9
4.6

66
68
64

134
134
150

187
188
206

5.0
4.0
5.0

33.0
28.0
23.0

57
52
46

62-71
61-67
61-68



FP-25-S
FP-25-M
FP-25-L

3.6
3.0
2.4

4.3
3.8
3.1

5.5
4.2
3.7

126
142
186

270
364
392

416
504
594

13
23
18

54
50
62

93
87
93

70-75
73-75
72-75

61-67
62-66
60-65

FP-35-S
FP-35-M
FP-35-L

3.8
3.0
2.4

4.7
4.0
3.1

5.8
4.6
3.6

294
248
282

668
778
680

1.038
1.080
1.066

23
24
38

101
83
89

162
141
135

72-77
74-78
74-80

71-73
70-73
68-74
FP-50-M 1,85 2,3 2,8 490 970 1660 48   192 70-77
FP-60-M 1,95 2,4 2,7 610 1400 2170 90   275 73-79
FP-95-M 1,8 2,4 2,8 1800 4060 6150 170   490 88-93

* with standard silencer
** with Free Flow silencer

The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.

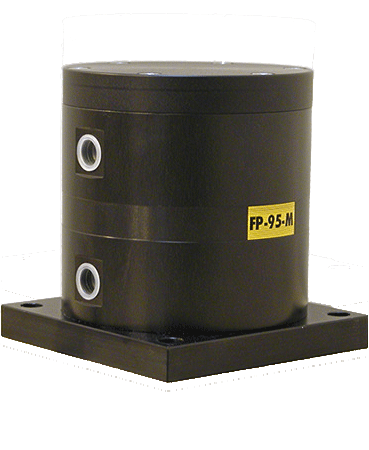

Aldak Kolbenvibrator Serie FP

Download:

Dimensioned drawings and technical details as pdf - file
