High frequency knockers & piston vibrators

FPK-40, FPK-55 and VTP-25

Kolbenvibratoren und Hochfrequenzklopfer der FPK- Serie

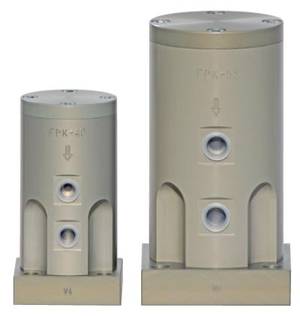

FPK-40 and FPK-55

The FPK high frequency knockers & piston vibrators do not require lubrication with oil or water by compressed air.

They produce a linear vibration with a large range of vibrational frequencies and amplitudes, adjustable via air pressure.
For the optional use, the vibrators will be supplied with a soft and a hard impact plate (in the footplate of the vibrator) as standard. As a result, the sine wave oscillator becomes a soft- or a hard-knocking high-frequency knocker. Thus these devices combine the advantages of high-frequency vibrators for fluidization of powder etc. with the characteristics of knockers - a solution for particularly problematic as well as adherent products. On delivery, the hard impact plate is already mounted.

The housing is made of a hardened and coated die-cast aluminum alloy. It is chemically resistant to ensure the utilization for the food industries as well as for the pharmaceutical & chemical industries.
The relation between weights to force of this units makes the applications of material conveyances particularly efficient. Light weight, compact design and low noise level while operating characterize these vibrators. The FPK- high frequency knockers & piston vibrators are easy to install and designed for a long lifetime with minimal maintenance requirements.

EX-protection versions (Ex II 2 G / D c T6 T85°C) are optionally available.



pneumatischer Vibrator bzw. Hochfrequenz-Klopfer VTP-25

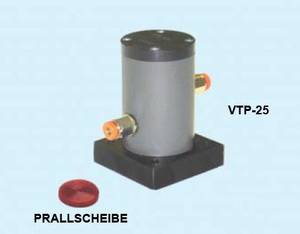

VTP-25

The pneumatic vibrator or high-frequency knocker VTP-25 is a multi-purpose vibrator with dual function.
The VTP-25 can easily converted from a piston vibrator (delivering a sinusoidal oscillation decelerated by air cushion) into a knocker operating with high frequency.

The VTP-25 comes with a mounted impact plate (urethane pad) as a knocker. To use the VTP-25 as a vibrator, just loosen the 4 screws of the base plate and remove the pad. Then tighten the base plate again.

The aluminum body is resistant coated against corrosion. The cover and the base plate are made of anodized aluminum and the piston is made of stainless steel.

VTP-25 also available according to ATEX Ex II 2 G & D Zone 1, 2, 21, 22.

Construction details FPK:

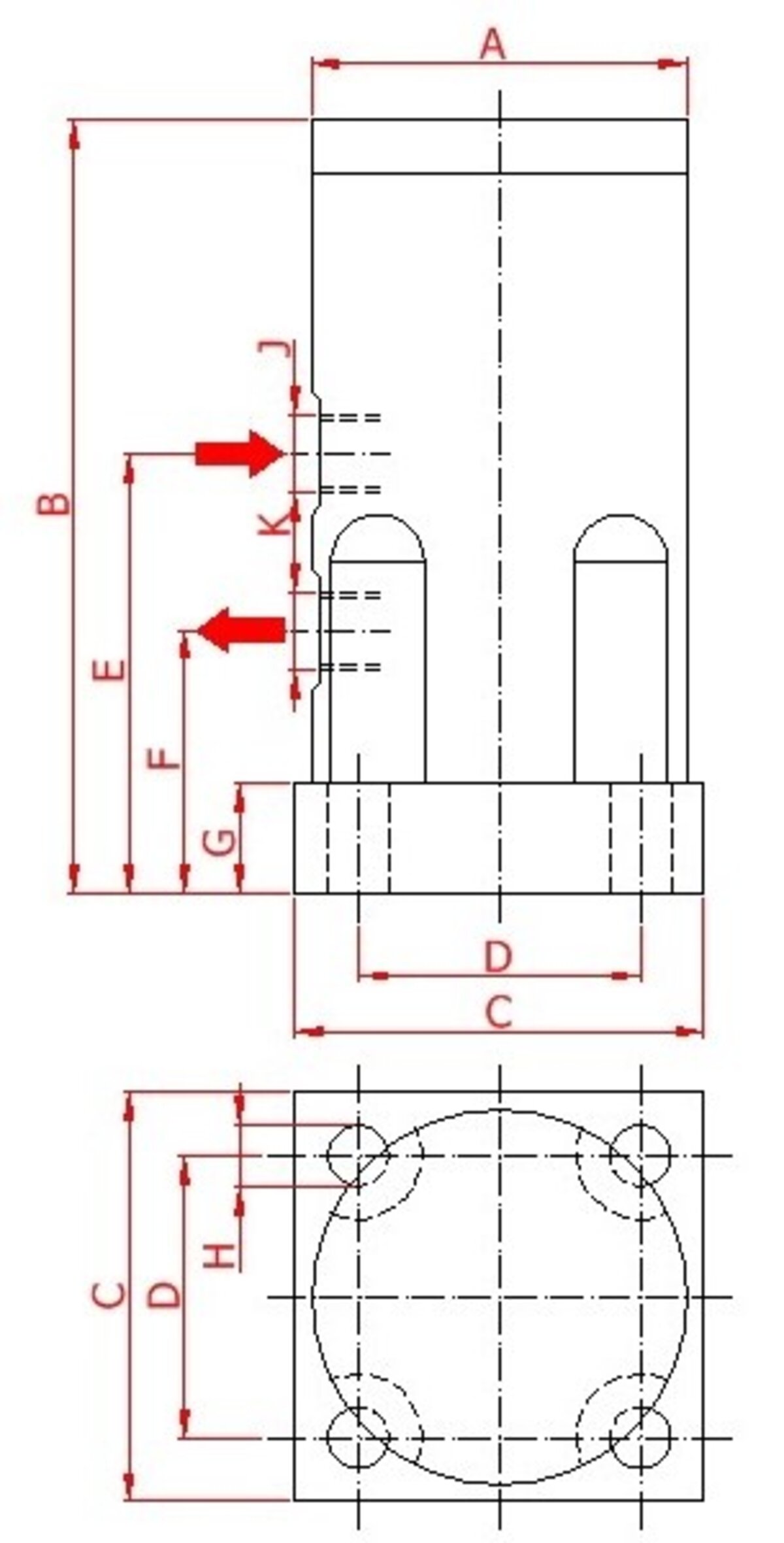

Dimensions FPK

TypeA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J

K

Weight
kg
FPK-40681407451804820111/4"1/4"1,68
FPK-5594191104781116025133/8"3/8"2,50

Construction details VFP:

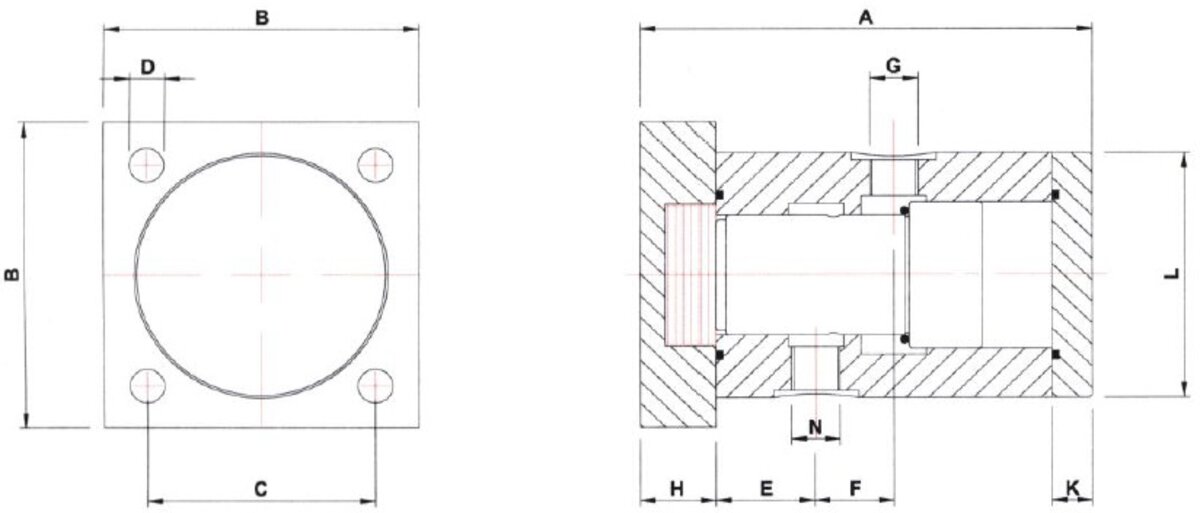

Dimension VFP:

TypeA
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G

H
mm
K
mm
L
mm
N

Weight
kg
VTP-259063,5466,53515,51/8"158511/8"0,635

Performance details:

TypeFrequency
/ min-1
Centrifugal force
/ N
Air consumption
/ l/min
 VTP-252 bar4 bar6 bar2 bar4 bar6 bar2 bar4 bar6 bar
Without impact plate (oscillating)260032003800164260185612285
With impact plate (knocking)**4780690083801303105002572160





TypeFrequency
/ min-1
Centrifugal force
/ N
Air consumption
/ l/min
 FPK-402 bar4 bar6 bar2 bar4 bar6 bar2 bar4 bar6 bar
Without impact plate (oscillating)21002400260019545573093150225
With soft impact plate (knocking)*28003900460032901041015030100195360
With hard impact plate (knocking)**28003900460072401499022750100195360





TypeFrequency
/ min-1
Centrifugal force
/ N
Air consumption
/ l/min
 FPK-552 bar4 bar6 bar2 bar4 bar6 bar2 bar4 bar6 bar
Without impact plate (oscillating)13501750205051011651985162360470
With soft impact plate (knocking)*22003400430054302131036570230380500
With hard impact plate (knocking)**220034004300175703696056350230380500

*   Standard with the vibrator
** Standard with the vibrator and installed

The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.
