Piston vibrators with piston rod
VTL - series (VTL-155 up to VTL-1105)
Steel housing
In contrast to the FAL series, the housing of the VTL types is made of steel. (Except type VTL-155, this has a plastic housing with aluminum end plate and steel piston / pls. see picture below). The relation between weights to force of this units makes the applications of material conveyances particularly efficient.
The piston vibrators the VTL series are characterized by a free-flying piston. This means the piston exits with a rod from the vibrator housing. If the mutually vibrating machines / device groups are fixed on the one hand to the bottom of the vibrator housing and on the other hand to the piston rod, the piston stroke generates a particularly large amplitude with linear oscillation.
The vibration frequency can be controlled via air pressure. The VTL series piston vibrators produce linear vibrations with a large vibration frequency and a wide amplitude range. The VTL vibrators are not knockers, what means the piston does not strike the bottom. The piston will be decelerated by an arising air cushion – either at the bottom or at the top side – and will be accelerated in the opposite direction. The centrifugal force / time curve is therefore almost sinusoidal without peaks by knocks. This attribute makes this types perfect for any cases of conveying material.
Explosion-proof, compact design and low noise level while operating characterize these vibrators. The VTL piston vibrators are easy to install and designed for a long lifetime with minimal maintenance requirements.
The vibrators are also available in accordance to ATEX II 2 G & D Zone 1, 2, 21, 22.

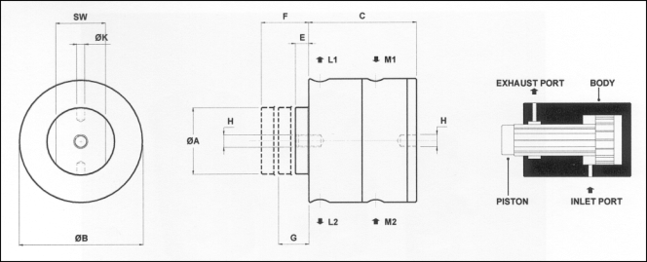

Dimensions (mm):
Type | A | B | C | E | F | G | H | K | L1 | L2 | M1 | M2 | SW | Weight / kg |
VTL-155 | 16,0 | 50 | 114 | 9 | 43,0 | 24,0 | M10 |
| 1/8" | 1/8" | 13 | 0,52 | ||
VTL-165 | 16,5 | 49 | 111 | 5 | 40,0 | 22,5 | M10 |
| 1/8" | 1/8" | 14 | 1,48 | ||
VTL-255 | 25,5 | 64 | 140 | 9 | 54,0 | 36,5 | M16 |
| 1/4" | 1/4" | 22 | 3,19 | ||
VTL-405 | 40,5 | 84 | 140 | 12 | 57,0 | 36,0 | M16 | 1/4" | 1/4" | 32 | 5,50 | |||
VTL-555 | 55,5 | 115 | 125 | 17 | 54,7 | 36,8 | M20 | 3/8" | 3/8" | 46 | 9,00 | |||
VTL-855 | 85,5 | 160 | 122 | 20 | 54,7 | 36,8 | M20 | 12,7 | 3/8" | 3/8" | 3/8" | 17,00 | ||
VTL-1105 | 110,5 | 200 | 122 | 22 | 54,7 | 36,3 | M20 | 12,7 | 1/2" | 1/2" | 3/8" | 3/8" | 28,00 |
Performance details:
Type | Frequency | Centrifugal force | Air consumption | |
max. | min. | max. | max. | |
VTL-155 | 2700 | 40 | 96 | 85 |
VTL-165 | 2700 | 43 | 96 | 70 |
VTL-255 | 2200 | 82 | 398 | 180 |
VTL-405 | 2000 | 206 | 657 | 390 |
VTL-555 | 2500 | 451 | 1305 | 717 |
VTL-855 | 2650 | 706 | 1530 | 900 |
VTL-1105 | 3000 | 1550 | 2737 | 920 |
* could increased by additional weights
The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.
