Ball vibrators

K -  series (K-8 up to K-36)

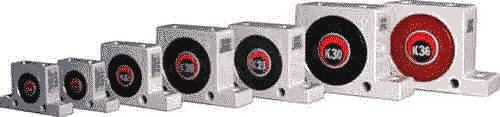

Aldak Kugelvibrator in verschiedenen Ausführungen

Sound pressure level: 75 up to 95 dBA

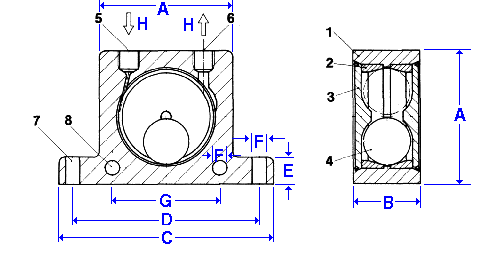

Construction details:

Kugelvibrator K-Serie

1 - Housing from flowing pressed aluminum alloy
2 - Hardened guides made of steel alloy
3 - Nylon end plates
4 - Hardened ball
5 - Air supply
6 - Air outlet
7 - Pre-drilled fixing holes (for base installation)
8 - Pre-drilled fixing holes (for laterally installation)

Dimensions:

Kugelvibrator K-Serie



A

B

C

D

E

F

G

H

Weight

Modell

mm

mm

mm

mm

mm

mm

mm

BSP

kg

K-8
K-10

50

20

86

68

12

7

40

1/4"

0.130

K-13
K-16

65

24
27

113

90

16

9

50

1/4"

0.260
0.300

K-20
K-25

80

33
38

128

104

16

9

60

1/4"

0.530
0.630

K-30
K-36

100

44
50

160

130

20

11

80

3/8"

1.130
1.340

Performance details:



Frequency
min-1 x 1000

Centrifugal force*

Air consumption / minute

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

K-8
K-10

25.5
22.5

31.0
28.0

35.0
34.0

130
250

260
470

360
710

83
92

145
150

195
200

K-13
K-16

15.0
13.0

18.5
17.0

22.5
19.5

320
450

550
800

870
1.100

94
122

158
200

225
280

K-20
K-25

10.5
9.2

14.5
12.2

16.5
14.0

720
930

1.220
1.570

1.720
2.050

130
160

230
290

340
425

K-30
K-36

7.8
7.3

9.7
9.0

12.5
10.0

1.510
2.060

2.470
3.150

3.210
4.050

215
260

375
475

570
675

* The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.

Download:

Dimensioned drawings and technical details as pdf - file.
