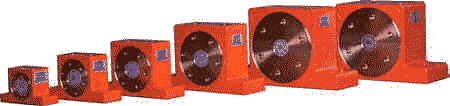

Roller vibrators (heavy duty)

DAR -  series (DAR-2 up to DAR-7)

Aldak Rollenvibrator heavy duty

Sound pressure level: 75 up to 100 dBA

Construction details:

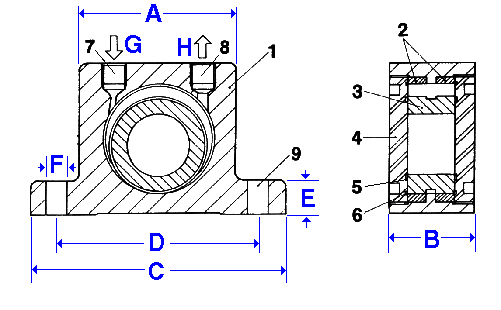

Technische Zeichnung des Rollenvibrator Serie DAR

1 - Housing from flowing pressed aluminum alloy
2 - Highly elastic steel guides
3 - Cast steel roller
4 - Special bronze end plates
5 - Lubricating oil gutters
6 - Dirt gutters
7 - Air supply nozzle
8 - Air outlet
9 - Pre-drilled fixing holes (for base installation)

Dimensions:

Technische Zeichnung des Rollenvibrator Serie DAR



A

B

C

D

E

F

G/H

Weight

Type

mm

mm

mm

mm

mm

mm

BSP

kg

DAR-2

50

30

86

68

12

7

1/8"

0.370

DAR-3

65

36

113

90

16

9

1/4"

0.760

DAR-4

80

40

128

102

16

11

1/4"

1.270

DAR-5

100

52

160

130

20

13

3/8"

2.450

DAR-6

120

62

194

152

24

17

3/8"

4.700

DAR-7

120

77

194

152

24

17

3/8"

5.700

Performance details:



Frequency
min-1 x 1000

Centrifugal force*

Air consumption / minute

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 bar
Ltr.

6 Bar
Ltr.

DAR-2

36.0

38.0

38.0

2.220

3.380

4.090

70

140

200

DAR-3

27.0

32.0

32.0

2.720

4.560

6.050

100

200

300

DAR-4

18.0

22.50

25.0

2.360

4.610

6.690

120

250

360

DAR-5

9.5

15.0

16.5

1.680

4.640

7.200

130

270

390

DAR-6

7.8

10.0

12.0

4.370

6.860

10.300

170

320

470

DAR-7

8.0

9.8

11.5

5.870

9.500

12.000

180

350

500

* The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.
