Piston vibrators

FPLF -  series (FPLF-12-XS up to FPLF-95-M)

Lubrication free versions
(for these types there is no lubrication necessary via compressed air)

Kolbenvibrator schmierungsfreie Ausführung

Sound pressure level: 65 bis 93 dBA

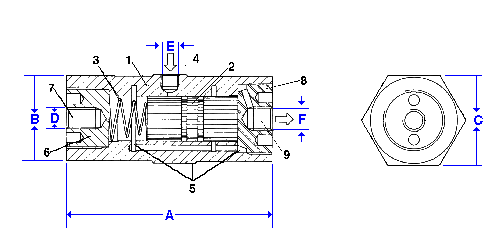

Construction details:

Technische Daten Kolbenvibrator Serie FPLF

1 - Housing made of hard anodized aluminum alloy
2 - Piston
3 - Spring - starting device
4 - Air supply
5 - Sound-absorbing air outlet system
6 - Hard anodized aluminum base
7 - Threaded insert for mounting
8 - Hard anodized aluminum end cap
9 - Air outlet

Dimensions FPLF-12 up to FPLF-35:

Technische Daten Kolbenvibrator Serie FPLF



A

B

C

D

E*

F*

Weight
Housing

Weight
Piston

Total
Weight

Type

mm

mm

mm

Metric

 BSP

BSP

kg

kg

kg

FPLF-12-XS
FPLF-12-S
FPLF-12-M
FPLF-12-L

50
71
81
94

31

34

M-8

1/8"

1/8"


0.125
0.140
0.165


0.020
0.030
0.040

0.105
0.145
0.170
0.205

FPLF-18-S
FPLF-18-M
FPLF-18-L

81
94
109

40

42

M-10

1/8"

1/8"

0.220
0.260
0.300

0.060
0.080
0.110

0.280
0.340
0.410

FPLF-25-S
FPLF-25-M
FPLF-25-L

98
116
136

48

50

M-12

1/8"

1/4"

0.375
0.435
0.500

0.155
0.215
0.290

0.530
0.650
0.790

FPLF-35-S
FPLF-35-M
FPLF-35-L

98
116
136

58

65

M-12

1/4"

1/4"

0.530
0.610
0.700

0.315
0.430
0.580

0.845
1.040
1.280

* NPT also possible

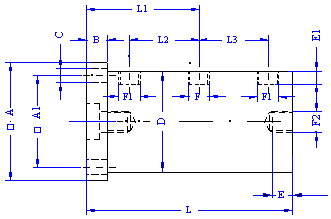

Dimensions FPLF-50 up to FPLF-95:

Aldak Kolbenvibrator Maße

Type

A

A1

B

C

D

E

E1

F

F1

F2

L

L1

L2

L3

Weight Housing

/ kg

Weight Piston

/ kg

Total Weight

/ kg
FPLF-50-M

90

72

20

8.8

84.0

13

10

G1/4"

G1/4"

G1/4"

154.0

78.5

41.5

41.5

1.350

1.500

3.250
FPLF-60-M

110

90

20

8.8

94.0

13

10

G1/4"

G3/8"

G1/4"

154.0

78.5

41.5

41.5

1.520

2.150

4.250
FPLF-95-M

150

124

19

13.0

140.0



12

G3/8"

G3/8"



156.0

77.5

35.0

35.0

2.600

Performance details:



Frequency
min-1 x 1000

Centrifugal force

Air consumption / minute

Noise

level

Type

2 Bar
29 PSI

4 Bar
58 PSI

6 Bar
87 PSI

2 Bar
N

4 Bar
N

6 Bar
N

2 Bar
Ltr.

4 Bar
Ltr.

6 Bar
Ltr.

dBA*

dBA**

FPLF-12-XS
FPLF-12-S
FPLF-12-M
FPLF-12-L

6.0
6.2
5.0
4.0

9.0
7.8
6.0
4.8

11.5
9.3
6.7
5.4

22
34
34
32

48
70
58
58

68
92
74
81

0.8
0.8
0.5
1.0

6.0
7.5
4.0
3.0

15
25
19
20

60-64
57-61
57-61
58-60



FPLF-18-S
FPLF-18-M
FPLF-18-L

5.0
4.0
3.1

6.4
5.0
4.0

7.7
5.9
4.6

66
68
64

134
134
150

187
188
206

5.0
4.0
5.0

33.0
28.0
23.0

57
52
46

62-71
61-67
61-68



FPLF-25-S
FPLF-25-M
FPLF-25-L

3.6
3.0
2.4

4.3
3.8
3.1

5.5
4.2
3.7

126
142
186

270
364
392

416
504
594

13
23
18

54
50
62

93
87
93

70-75
73-75
72-75

61-67
62-66
60-65

FPLF-35-S
FPLF-35-M
FPLF-35-L

3.8
3.0
2.4

4.7
4.0
3.1

5.8
4.6
3.6

294
248
282

668
778
680

1.038
1.080
1.066

23
24
38

101
83
89

162
141
135

72-77
74-78
74-80

71-73
70-73
68-74
FPLF-50-M 1,85 2,3 2,8 490 970 1660 48   192 70-77
FPLF-60-M 1,95 2,4 2,7 610 1400 2170 90   275 73-79
FPLF-95-M 1,8 2,4 2,8 1800 4060 6150 170   490 88-93

* with standard silencer
** with Free Flow silencer

The technical data were measured with a Kistler 3-axis dynamometer. The tests were performed on a massive laboratory test block and displayed with a Kistler Control Monitor (COMO). Frequency and power decrease on less rigid basis. We reserve the right to improve, modify or withdraw specifications or products without notice or any further obligation.

Download:

Dimensioned drawings and technical details as pdf - file
